Doctor Blade GPP Chip中出人妻中文字幕无码 -
The GPP chip is produced by scraping method, and it can be produced according to the needs of customers combined with SIPOS (oxygen doped semi insulating polysilicon) deposition process, which has obvious effect on improving the reliability and stability of the chip itself. 日本中文字幕在线.
Gpp is the abbreviation of Glassivation (vitrified) passivation (passivation) parts (element) or parts of an apparats (device) phrase, and is collectively referred to as glass passivation device 欧美日韩精品一区二区三区不卡. It generally refers to all active devices that introduce or contain plasma film protection process. .
However, due to the exposed on crystal body of PN junction which used on surface mount diode, had a very good application performance, so that the Gpp (Glassivation passivation parts) has become synonymous with the "glass passivated diode" 欧美日韩国产精品一区二区三区. .
Therefore, because of its high reliability and stability, the glass passivation process is widely used in high voltage, high power diode. At present, there are mainly ways to form glass passivation films, such as doctor blade, photoresister and electrophoresis 国产欧美日韩亚洲一区二区三区. Our company can supply the corresponding process production according to customer needs and application. .

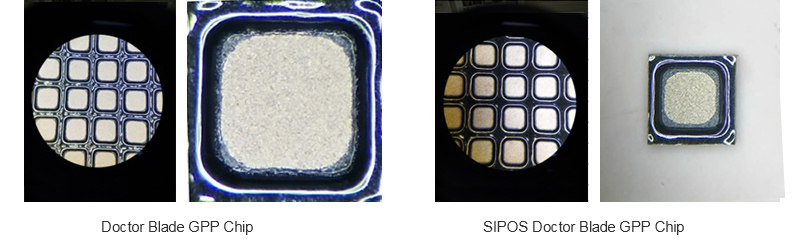

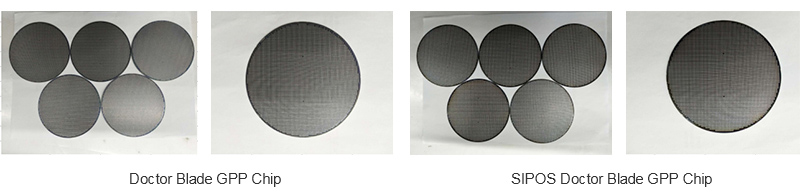

The doctor blade method is prepared by mixing glass powder and solvent into glass slurry, and the blade is used to scrape the glass into the mesa of the groove. This process can be used to make a thicker glass passivation film, especially for the devices such as high power and high voltage devices and power electronic devices. 亚洲欧美一区二区三区在线.
Secondly, this process can be effectively protected by the SIPOS (semi insulating polyoxysiliside) deposition process, and it can improve the reliability and stability of the chip device 欧洲美一区二区三区亚洲. It can meet the customer's high reliability demand under the conditions such as high temperature, high humidity, high reverse bias , strong electric field and so on. .
The products include all kinds of products, such as STDGPP, FRGPP, HERGPP, SFGPP, TVSGPP and so on. 国产国语老龄妇女A片.
- File name
- File download
- Doctor Blade GPP Chip parameter configuration table
- Standard Rectifier GPP Chip parameter configuration table
- Fast Recovery Rectifier GPP Chip parameter configuration table
- High Efficieny Rectifier GPP Chip parameter configuration table
- Super Fast Rectifier GPP Chip parameter configuration table
欧美日韩精品一区二区三区不卡 - Standard Rectifier GPP Chip

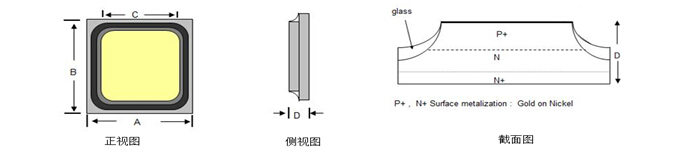

Number | 型号 | Size | Electrical Parameters | |||||||
A(mil) | B(mil) | C(mil) | D(uM) | VF(V) ≥98% | IF(A) | VR(V) | IR(uA) @25℃ | TRR(ns)@ RG-1≥98% | ||
1 | SGPP36M | 36±2 | 36±2 | 18±3 | 260±20 | <0.98 | 0.5A | >1100 | 1 | >800 |
2 | SGPP40M | 40±2 | 40±2 | 20±3 | 260±20 | <0.98 | 0.6A | >1100 | 1 | >800 |
3 | SGPP42M | 42±2 | 42±2 | 22±3 | 260±20 | <0.98 | 0.7A | >1100 | 1 | >800 |
4 | SGPP44M | 44±2 | 44±2 | 24±3 | 260±20 | <0.98 | 0.8A | >1100 | 1 | >800 |
5 | SGPP45M | 45±2 | 45±2 | 26±3 | 260±20 | <0.98 | 1A | >1100 | 1 | >800 |
6 | SGPP46M | 46±2 | 46±2 | 26±3 | 260±20 | <0.98 | 1A | >1100 | 1 | >800 |
7 | SGPP48M | 48±2 | 48±2 | 28±3 | 260±20 | <0.98 | 1A | >1100 | 1 | >800 |
8 | SGPP50M | 50±2 | 50±2 | 30±3 | 260±20 | <0.98 | 1A | >1100 | 1 | >1000 |
9 | SGPP60M | 60±2 | 60±2 | 40±3 | 260±20 | <1.0 | 2A | >1100 | 1 | >1000 |
10 | SGPP70M | 70±2 | 70±2 | 49±3 | 260±20 | <1.0 | 3A | >1100 | 2 | >1000 |
11 | SGPP84M | 84±2 | 84±2 | 62±3 | 260±20 | <1.0 | 4A | >1100 | 2 | >1000 |
12 | SGPP88M | 88±2 | 88±2 | 66±3 | 260±20 | <1.0 | 4A | >1100 | 2 | >1000 |
13 | SGPP95M | 95±2 | 95±2 | 73±3 | 260±20 | <1.0 | 5A | >1100 | 2 | >1000 |
14 | SGPP100M | 100±2 | 100±2 | 78±3 | 260±20 | <1.0 | 5A | >1100 | 5 | >1000 |
15 | SGPP110M | 110±2 | 110±2 | 86±3 | 260±20 | <1.0 | 7.5A | >1100 | 5 | >1000 |
16 | SGPP120M | 120±2 | 120±2 | 96±3 | 260±20 | <1.0 | 10A | >1100 | 5 | >1000 |
17 | SGPP130M | 130±2 | 130±2 | 104±3 | 260±20 | <1.0 | 12.5A | >1100 | 5 | >1000 |
18 | SGPP140M | 140±2 | 140±2 | 114±3 | 260±20 | <1.0 | 12.5A | >1100 | 5 | >1000 |
19 | SGPP160M | 160±2 | 160±2 | 134±3 | 260±20 | <1.0 | 17.5A | >1100 | 5 | >1000 |
20 | SGPP180M | 180±2 | 180±2 | 154±3 | 260±20 | <1.0 | 20A | >1100 | 5 | >1000 |
Fast Recovery Rectifier GPP Chip
Number | 型号 | Size | Electrical Parameters | |||||||
A(mil) | B(mil) | C(mil) | D(uM) | VF(V) ≥98% | IF(A) | VR(V) | IR(uA)@ 25℃ | TRR(ns)@RG-1 ≥98% | ||
1 | FR104G | 42±2 | 42±2 | 24±3 | 230±10 | <1.15 | 0.7A | >600 | 2 | <150 |
2 | FR104G | 46±2 | 46±2 | 26±3 | 230±10 | <1.15 | 1A | >600 | 2 | <150 |
3 | FR104G | 50±2 | 50±2 | 30±3 | 230±10 | <1.15 | 1A | >600 | 2 | <150 |
4 | FR204G | 60±2 | 60±2 | 40±3 | 230±10 | <1.15 | 2A | >600 | 2 | <150 |
5 | FR204G | 70±2 | 70±2 | 49±3 | 230±10 | <1.15 | 2A | >600 | 2 | <150 |
6 | FR304G | 84±2 | 84±2 | 62±3 | 230±10 | <1.15 | 3A | >600 | 2 | <150 |
7 | FR105G | 42±2 | 42±2 | 24±3 | 230±10 | <1.2 | 0.7A | >800 | 2 | <150 |
8 | FR105G | 46±2 | 46±2 | 26±3 | 230±10 | <1.2 | 1A | >800 | 2 | <150 |
9 | FR105G | 50±2 | 50±2 | 30±3 | 230±10 | <1.2 | 1A | >800 | 2 | <150 |
10 | FR205G | 60±2 | 60±2 | 40±3 | 230±10 | <1.2 | 2A | >800 | 2 | <150 |
11 | FR205G | 70±2 | 70±2 | 49±3 | 230±10 | <1.2 | 2A | >800 | 2 | <150 |
12 | FR305G | 84±2 | 84±2 | 62±3 | 230±10 | <1.2 | 3A | >800 | 2 | <150 |
13 | FR107G | 42±2 | 42±2 | 24±3 | 255±10 | <1.28 | 0.7A | >1100 | 2 | <300 |
14 | FR107G | 46±2 | 46±2 | 26±3 | 255±10 | <1.28 | 1A | >1100 | 2 | <300 |
15 | FR107G | 50±2 | 50±2 | 30±3 | 255±10 | <1.28 | 1A | >1100 | 2 | <300 |
16 | FR207G | 60±2 | 60±2 | 40±3 | 255±10 | <1.28 | 2A | >1100 | 2 | <300 |
17 | FR207G | 70±2 | 70±2 | 49±3 | 255±10 | <1.28 | 2A | >1100 | 2 | <300 |
18 | FR307G | 84±2 | 84±2 | 62±3 | 255±10 | <1.28 | 3A | >1100 | 2 | <300 |
High Efficieny Rectifier GPP Chip
Number | 型号 | Size | Electrical Parameters | |||||||
A(mil) | B(mil) | C(mil) | D(uM) | VF(V) ≥98% | IF(A) | VR(V) | IR(uA)@ 25℃ | TRR(ns)@RG-1 ≥98% | ||
1 | H103G | 42±2 | 42±2 | 24±3 | 210±10 | <1.0 | 0.7A | >300 | 2 | <50 |
2 | H103G | 46±2 | 46±2 | 26±3 | 210±10 | <1.0 | 1A | >300 | 2 | <50 |
3 | H103G | 50±2 | 50±2 | 30±3 | 210±10 | <1.0 | 1A | >300 | 2 | <50 |
4 | H203G | 60±2 | 60±2 | 40±3 | 210±10 | <1.0 | 2A | >300 | 2 | <50 |
5 | H203G | 70±2 | 70±2 | 49±3 | 210±10 | <1.0 | 2A | >300 | 2 | <50 |
6 | H303G | 84±2 | 84±2 | 62±3 | 210±10 | <1.0 | 3A | >300 | 2 | <50 |
7 | H105G | 42±2 | 42±2 | 24±3 | 220±10 | <1.25 | 0.7A | >450 | 2 | <50 |
8 | H105G | 46±2 | 46±2 | 26±3 | 220±10 | <1.25 | 1A | >450 | 2 | <50 |
9 | H105G | 50±2 | 50±2 | 30±3 | 220±10 | <1.25 | 1A | >450 | 2 | <50 |
10 | H205G | 60±2 | 60±2 | 40±3 | 220±10 | <1.25 | 2A | >450 | 2 | <50 |
11 | H205G | 70±2 | 70±2 | 49±3 | 220±10 | <1.25 | 2A | >450 | 2 | <50 |
12 | H305G | 84±2 | 84±2 | 62±3 | 220±10 | <1.25 | 3A | >450 | 2 | <50 |
13 | H108G | 42±2 | 42±2 | 24±3 | 240±10 | <1.68 | 0.7A | >1100 | 2 | <75 |
14 | H108G | 46±2 | 46±2 | 26±3 | 240±10 | <1.68 | 1A | >1100 | 2 | <75 |
15 | H108G | 50±2 | 50±2 | 30±3 | 240±10 | <1.68 | 1A | >1100 | 2 | <75 |
16 | H208G | 60±2 | 60±2 | 40±3 | 240±10 | <1.68 | 2A | >1100 | 2 | <75 |
17 | H208G | 70±2 | 70±2 | 49±3 | 240±10 | <1.68 | 2A | >1100 | 2 | <75 |
18 | H308G | 84±2 | 84±2 | 62±3 | 240±10 | <1.68 | 3A | >1100 | 2 | <75 |
Super Fast Rectifier GPP Chip
Number | 型号 | Size | Electrical Parameters | |||||||
A(mil) | B(mil) | C(mil) | D(uM) | VF(V) ≥98% | IF(A) | VR(V) | IR(uA)@ 25℃ | TRR(ns)@RG-1 ≥98% | ||
1 | SF104G | 46±2 | 46±2 | 25±3 | 200±10 | <0.95 | 1A | >300 | 1 | <35 |
2 | SF104G | 50±2 | 50±2 | 30±3 | 200±10 | <0.95 | 1A | >300 | 1 | <35 |
3 | SF204G | 60±2 | 60±2 | 40±3 | 200±10 | <0.95 | 2A | >300 | 2 | <35 |
4 | SF304G | 84±2 | 84±2 | 62±3 | 200±10 | <0.95 | 3A | >300 | 3 | <35 |
5 | SF304G | 88±2 | 88±2 | 66±3 | 200±10 | <0.95 | 3A | >300 | 3 | <35 |
6 | SF504G | 95±2 | 95±2 | 73±3 | 200±10 | <0.95 | 5A | >300 | 5 | <35 |
7 | SF604G | 110±2 | 110±2 | 86±3 | 200±10 | <0.95 | 6A | >300 | 5 | <35 |
8 | SF106G | 46±2 | 46±2 | 25±3 | 210±10 | <1.25 | 1A | >450 | 1 | <35 |
9 | SF106G | 50±2 | 50±2 | 30±3 | 210±10 | <1.25 | 1A | >450 | 1 | <35 |
10 | SF206G | 60±2 | 60±2 | 40±3 | 210±10 | <1.25 | 2A | >450 | 2 | <35 |
11 | SF306G | 84±2 | 84±2 | 62±3 | 210±10 | <1.25 | 3A | >450 | 3 | <35 |
12 | SF306G | 88±2 | 88±2 | 66±3 | 210±10 | <1.25 | 3A | >450 | 3 | <35 |
13 | SF506G | 95±2 | 95±2 | 73±3 | 210±10 | <1.25 | 5A | >450 | 5 | <35 |
14 | SF606G | 110±2 | 110±2 | 86±3 | 210±10 | <1.25 | 6A | >450 | 5 | <35 |
15 | SF108G | 46±2 | 46±2 | 25±3 | 220±10 | <1.68 | 1A | >650 | 1 | <35 |
16 | SF104G | 50±2 | 50±2 | 30±3 | 220±10 | <1.68 | 1A | >650 | 1 | <35 |
17 | SF208G | 60±2 | 60±2 | 40±3 | 220±10 | <1.68 | 2A | >650 | 2 | <35 |
18 | SF308G | 70±2 | 70±2 | 49±3 | 220±10 | <1.68 | 3A | >650 | 3 | <35 |
19 | SF308G | 84±2 | 84±2 | 62±3 | 220±10 | <1.68 | 3A | >650 | 3 | <35 |
20 | SF308G | 88±2 | 88±2 | 66±3 | 220±10 | <1.68 | 3A | >650 | 3 | <35 |
21 | SF508G | 95±2 | 95±2 | 73±3 | 220±10 | <1.68 | 5A | >650 | 5 | <35 |
22 | SF608G | 110±2 | 110±2 | 86±3 | 220±10 | <1.68 | 6A | >650 | 5 | <35 |
