"亚洲欧美一区二区三区在线" TVS Chip
Our company provides 200W, 400W, 600W, 1500W, 5000W 6 日本中文字幕在线. 8V to 400V A/CA (one way and two way) products, and it can provide two sizes of products, namely, guest size, tool scraping method and photo resist method GPP. .
Now you can shock wave problem, give the company a low capacitance surge absorber, will limit the voltage "instant high Transient Voltage Suppressors (TVS) (transient voltage shock wave suppression), improve the reliability of service life and system equipment, so you no longer worry about thunder and lightning, the machinery and equipment to be damage,

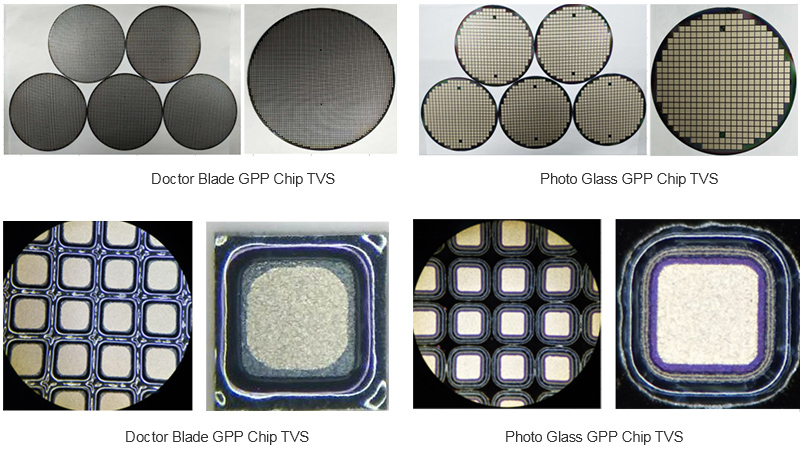

Standard grain specification table
Chipsize | Package |
45 | P2 |
60 | P4KE, BZW04,SMAJ, P4SMA |
70 | SMA, SMA5J, P4SMA |
80 | P6KE, SMBJ,P6SMB |
90 | SMB8J |
114 | SMCJ |
125 | 1P5KE, 1P5SMC |
FEATURE
Low power loss High surge capability Glass passivated chip junction Available in Unidirectional and Bidirectional (For Bidirectional types, use A or CA suffix, e. g 欧美日韩国产精品一区二区三区. P6KE400CA) Ultra-fast recovery time for high efficiency High temperature soldering guaranteed .
600W electric meter
MAXIMUM RATINGS(TA = 25 °C unless otherwise noted) | |||
PARAMETER | Symbol | VALUE UNI | units |
Peak power dissipation with a 10/1000 µs waveform | PPPM | 600 | W |
Peak pulse current with a 10/1000 µs waveform | IPPM | see next table | A |
Power dissipation on infinite heatsink at TL = 75 °C | PD | 5.0 | W |
Peak forward surge current, 8 漂亮美人妻被中出中文字幕. 3 ms single half sine-wave unidirectional only . | IFSM | 100 | A |
Maximum instantaneous forward voltage at 50A for unidirectional only | VF | 3.5/5.0 | V |
Typical thermal resistance junction-to-lead | Rth(jl) | 20 | ℃/W |
Typical thermal resistance junction-to--ambient | Rth(ja) | 75 | ℃/W |
Storage and Operating Junction Temperature | Tstg,Tj | -55 to +175 | ℃ |
DEVICE TYPE | BREAKDOWN VOLTAGE V(BR) (V)@ IT(1) | TEST CURRENT IT(mA) | STAND-OFF VOLTAGE VWM (V) | MAXIMUM REVERSE LEAKAGE ID(uA)@VWM | PEAK PULSE CURRENT IPPM(A)(2) | MAXIMUM CLAMPING VOLTAGE VC(V)@ IPPM | |
MIN | MAX | ||||||
P6KE6.8 | 6.12 | 7.48 | 10 | 5.50 | 1000 | 55.6 | 10.8 |
P6KE6.8A | 6.45 | 7.14 | 10 | 5.80 | 1000 | 57.1 | 10.5 |
P6KE7.5 | 6.75 | 8.25 | 10 | 6.05 | 500 | 51.3 | 11.7 |
P6KE7.5A | 7.13 | 7.88 | 10 | 6.40 | 500 | 53.1 | 11.3 |
P6KE8.2 | 7.38 | 9.02 | 10 | 6.63 | 200 | 48.0 | 12.5 |
P6KE8.2A | 7.79 | 8.61 | 10 | 7.02 | 200 | 49.6 | 12.1 |
P6KE9.1 | 8.19 | 10.0 | 1.0 | 7.37 | 50 | 43.5 | 13.8 |
P6KE9.1A | 8.65 | 9.55 | 1.0 | 7.78 | 50 | 44.8 | 13.4 |
P6KE10 | 9.00 | 11.0 | 1.0 | 8.10 | 10 | 40.0 | 15.0 |
P6KE10A | 9.50 | 10.5 | 1.0 | 8.55 | 10 | 41.4 | 14.5 |
P6KE11 | 9.90 | 12.1 | 1.0 | 8.92 | 5.0 | 37.0 | 16.2 |
P6KE11A | 10.5 | 11.6 | 1.0 | 9.40 | 5.0 | 38.5 | 15.6 |
P6KE12 | 10.8 | 13.2 | 1.0 | 9.72 | 5.0 | 34.7 | 17.3 |
P6KE12A | 11.4 | 12.6 | 1.0 | 10.2 | 5.0 | 35.9 | 16.7 |
P6KE13 | 11.7 | 14.3 | 1.0 | 10.5 | 5.0 | 31.6 | 19.0 |
P6KE13A | 12.4 | 13.7 | 1.0 | 11.1 | 5.0 | 33.0 | 18.2 |
P6KE15 | 13.5 | 16.5 | 1.0 | 12.1 | 1.0 | 27.3 | 22.0 |
P6KE15A | 14.3 | 15.8 | 1.0 | 12.8 | 1.0 | 28.3 | 21.2 |
P6KE16 | 14.4 | 17.6 | 1.0 | 12.9 | 1.0 | 25.5 | 23.5 |
P6KE16A | 15.2 | 16.8 | 1.0 | 13.6 | 1.0 | 26.7 | 22.5 |
P6KE18 | 16.2 | 19.8 | 1.0 | 14.5 | 1.0 | 22.6 | 26.5 |
P6KE18A | 17.1 | 18.9 | 1.0 | 15.3 | 1.0 | 23.8 | 25.2 |
P6KE20 | 18.0 | 22.0 | 1.0 | 16.2 | 1.0 | 20.6 | 29.1 |
P6KE20A | 19.0 | 21.0 | 1.0 | 17.1 | 1.0 | 21.7 | 27.7 |
P6KE22 | 19.8 | 24.2 | 1.0 | 17.8 | 1.0 | 18.8 | 31.9 |
P6KE22A | 20.9 | 23.1 | 1.0 | 18.8 | 1.0 | 19.6 | 30.6 |
P6KE24 | 21.6 | 26.4 | 1.0 | 19.4 | 1.0 | 17.3 | 34.7 |
P6KE24A | 22.8 | 25.2 | 1.0 | 20.5 | 1.0 | 18.1 | 33.2 |
P6KE27 | 24.3 | 29.7 | 1.0 | 21.8 | 1.0 | 15.3 | 39.1 |
P6KE27A | 25.7 | 28.4 | 1.0 | 23.1 | 1.0 | 16.0 | 37.5 |
P6KE30 | 27.0 | 33.0 | 1.0 | 24.3 | 1.0 | 13.8 | 43.5 |
P6KE30A | 28.5 | 31.5 | 1.0 | 25.6 | 1.0 | 14.5 | 41.4 |
P6KE33 | 29.7 | 36.3 | 1.0 | 26.8 | 1.0 | 12.6 | 47.7 |
P6KE33A | 31.4 | 34.7 | 1.0 | 28.2 | 1.0 | 13.1 | 45.7 |
P6KE36 | 32.4 | 39.6 | 1.0 | 29.1 | 1.0 | 11.5 | 52.0 |
P6KE36A | 34.2 | 37.8 | 1.0 | 30.8 | 1.0 | 12.0 | 49.9 |
P6KE39 | 35.1 | 42.9 | 1.0 | 31.6 | 1.0 | 10.6 | 56.4 |
P6KE39A | 37.1 | 41.0 | 1.0 | 33.3 | 1.0 | 11.1 | 53.9 |
P6KE43 | 38.7 | 47.3 | 1.0 | 34.8 | 1.0 | 9.7 | 61.9 |
P6KE43A | 40.9 | 45.2 | 1.0 | 36.8 | 1.0 | 10.1 | 59.3 |
P6KE47 | 42.3 | 51.7 | 1.0 | 38.1 | 1.0 | 8.8 | 67.8 |
P6KE47A | 44.7 | 49.4 | 1.0 | 40.2 | 1.0 | 9.3 | 64.8 |
P6KE51 | 45.9 | 56.1 | 1.0 | 41.3 | 1.0 | 8.2 | 73.5 |
P6KE51A | 48.5 | 53.6 | 1.0 | 43.6 | 1.0 | 8.6 | 70.1 |
P6KE56 | 50.4 | 61.6 | 1.0 | 45.4 | 1.0 | 7.5 | 80.5 |
P6KE56A | 53.2 | 58.8 | 1.0 | 47.8 | 1.0 | 7.8 | 77.0 |
P6KE62 | 55.8 | 68.2 | 1.0 | 50.2 | 1.0 | 6.7 | 89.0 |
P6KE62A | 58.9 | 65.1 | 1.0 | 53.0 | 1.0 | 7.1 | 85.0 |
DEVICE TYPE | BREAKDOWN VOLTAGE V(BR) (V) @ IT(1) | TEST CURRENT IT(mA) | STAND-OFF VOLTAGE VWM (V) | MAXIMUM REVERSE LEAKAGE ID(uA) @VWM(3) | PEAK PULSE CURRENT IPPM(A)(2) | MAXIMUM CLAMPING VOLTAGE VC(V) @ IPPM | |
MIN | MAX | ||||||
P6KE68 | 61.2 | 74.8 | 1.0 | 55.1 | 1.0 | 6.1 | 98.0 |
P6KE68A | 64.6 | 71.4 | 1.0 | 58.1 | 1.0 | 6.5 | 92.0 |
P6KE82 | 73.8 | 90.2 | 1.0 | 66.4 | 1.0 | 5.1 | 118 |
P6KE82A | 77.9 | 86.1 | 1.0 | 70.1 | 1.0 | 5.3 | 113 |
P6KE91 | 81.9 | 100 | 1.0 | 73.7 | 1.0 | 4.6 | 131 |
P6KE91A | 86.5 | 95.5 | 1.0 | 77.8 | 1.0 | 4.8 | 125 |
P6KE100 | 90.0 | 110 | 1.0 | 81.0 | 1.0 | 4.2 | 144 |
P6KE100A | 95.0 | 105 | 1.0 | 85.5 | 1.0 | 4.4 | 137 |
P6KE110 | 99.0 | 121 | 1.0 | 89.2 | 1.0 | 3.8 | 158 |
P6KE110A | 105 | 116 | 1.0 | 94.0 | 1.0 | 3.9 | 152 |
P6KE120 | 108 | 132 | 1.0 | 97.2 | 1.0 | 3.5 | 173 |
P6KE120A | 114 | 126 | 1.0 | 102 | 1.0 | 3.6 | 165 |
P6KE130 | 117 | 143 | 1.0 | 105 | 1.0 | 3.2 | 187 |
P6KE130A | 124 | 137 | 1.0 | 111 | 1.0 | 3.4 | 179 |
P6KE140 | 126 | 154 | 1.0 | 112 | 1.0 | 3.0 | 200 |
P6KE140A | 133 | 147 | 1.0 | 119 | 1.0 | 3.1 | 192 |
P6KE150 | 135 | 165 | 1.0 | 121 | 1.0 | 2.8 | 215 |
P6KE150A | 143 | 158 | 1.0 | 128 | 1.0 | 2.9 | 207 |
P6KE160 | 144 | 176 | 1.0 | 130 | 1.0 | 2.6 | 230 |
P6KE160A | 152 | 168 | 1.0 | 136 | 1.0 | 2.7 | 219 |
P6KE170 | 153 | 187 | 1.0 | 138 | 1.0 | 2.5 | 244 |
P6KE170A | 162 | 179 | 1.0 | 145 | 1.0 | 2.6 | 234 |
P6KE180 | 162 | 198 | 1.0 | 146 | 1.0 | 2.3 | 258 |
P6KE180A | 171 | 189 | 1.0 | 154 | 1.0 | 2.4 | 246 |
P6KE200 | 180 | 220 | 1.0 | 162 | 1.0 | 2.1 | 287 |
P6KE200A | 190 | 210 | 1.0 | 171 | 1.0 | 2.2 | 274 |
P6KE220 | 198 | 242 | 1.0 | 175 | 1.0 | 1.7 | 344 |
P6KE220A | 209 | 231 | 1.0 | 185 | 1.0 | 1.8 | 328 |
P6KE250 | 225 | 275 | 1.0 | 202 | 1.0 | 1.7 | 360 |
P6KE250A | 237 | 263 | 1.0 | 214 | 1.0 | 1.7 | 344 |
P6KE300 | 270 | 330 | 1.0 | 243 | 1.0 | 1.4 | 430 |
P6KE300A | 285 | 315 | 1.0 | 256 | 1.0 | 1.4 | 414 |
P6KE350 | 315 | 385 | 1.0 | 284 | 1.0 | 1.2 | 504 |
P6KE350A | 333 | 368 | 1.0 | 300 | 1.0 | 1.2 | 482 |
P6KE400 | 360 | 440 | 1.0 | 324 | 1.0 | 1.0 | 574 |
P6KE400A | 380 | 420 | 1.0 | 342 | 1.0 | 1.1 | 548 |
P6KE440 | 396 | 484 | 1.0 | 356 | 1.0 | 0.95 | 631 |
P6KE440A1 | 442 | 462 | 1.0 | 376 | 1.0 | 1.0 | 602 |
P6KE440A | 418 | 462 | 1.0 | 376 | 1.0 | 1.0 | 602 |
P6KE480 | 432 | 528 | 1.0 | 389 | 1.0 | 0.88 | 686 |
P6KE480A | 456 | 504 | 1.0 | 408 | 1.0 | 0.91 | 658 |
P6KE510 | 459 | 561 | 1.0 | 413 | 1.0 | 0.82 | 729 |
P6KE510A | 485 | 535 | 1.0 | 434 | 1.0 | 0.86 | 698 |
P6KE540 | 486 | 594 | 1.0 | 437 | 1.0 | 0.78 | 772 |
P6KE540A | 513 | 567 | 1.0 | 459 | 1.0 | 0.81 | 740 |
