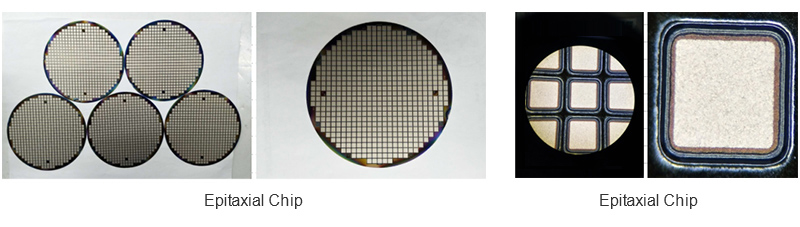

EPI Chip (epitaxial chip)玖月影视 -

The epitaxial film is used as the carrier, and the special product characteristics are obtained by diffusion and glass passivation. The oscillations of the TRR waveform are smaller and the application interference is small. 日本中文字幕在线.

Epitaxial film is a monocrystalline silicon sheet which is grown on the surface of the substrate by an epitaxial process. The epitaxial film is used as the carrier, and the special product characteristics are obtained by diffusion and glass passivation. The oscillations of the TRR waveform are smaller and the application interference is small. 欧美日韩精品一区二区三区不卡.

It can meet the customer's long time work demand under the bad conditions such as high temperature, high humidity, strong electric field and so on 欧美日韩国产精品一区二区三区. .

Parameter configuration table

Dimension Part number	A	B	C	D
	Limits ±12	Limits ±2	Limits ±3	Limits ±1
1A	50	12	27	2
2~4A	64	12	41	2
3~6A	72	12	49	2
5~8A	84	12	61	2
8~10A	95	12	72	2

Parameter	Symbol	SF50	SF64	SF72	SF84	SF95	Unit
Peak Inverse V	PIV	100 ~ 800					Volts
Forward Current	IF	1	3	5	8	10	Amps
Forward Volts	VF	PIV：200V VF spec. 0.9 PIV：400V VF spec. 1.25 PIV：600V VF spec. 1.7 PIV：800V VF spec. 2.2					Volts
Reverse recovery time	TRR	20~35					ns
Surge Current	IFSM	30	100	125			Amp/8.3ms
Leakage at 100℃	IRFM	400					uA
Junction Temp	TJ,MAX	150					Degrees ℃
Leakage 25℃	IRFM	10.0					uA
Storage Temp	TST	-65 ------- 150					Degrees ℃
Die Attach Temp	TD	340~375					Degrees ℃/2 min

Our company provides PG photolithography process;

Guest system requirements for electrical properties;
Low temperature rise product;
High power products;
White / gold diffusion products;
